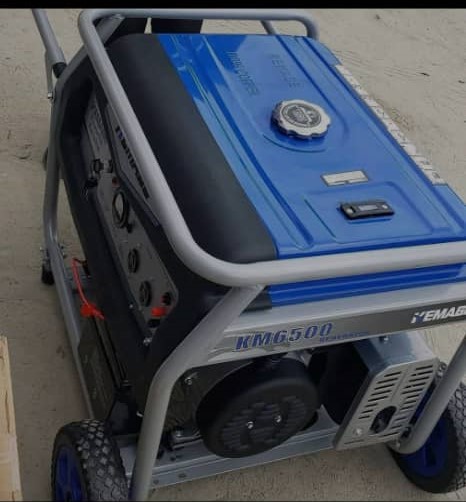

Gasoline Generator KM6500H

Model KM-6500H (push start, wheel, handle)

Engine-type

inclined single cylinder 4-stroke(OHV) , air cooled

Output 15 Hp(KM-190FD)

Bore x stroke 90 x 64 mm

Displacement 420 CC

Speed 3000 r/min

Oil capacity 1.1 L

Fuel tank capacity 33 L

Ignition system transistorized ignition

Compression ratio 8:01

Dynamo-type 2-pole-copper wire

Max; Output 5.5 KW(140mm)

Voltage 220 VAC(AVR)

Frequency 50 Hz

Oil level alert system √

Over current breaker 23 A

Fuel level indicator √

Battery 12V/17Ah

Dimension 700x550x590 mm
